HOW TO CREATE IBM QRADAR SIEM RULE AND RULE GROUP

How to create siem rule group

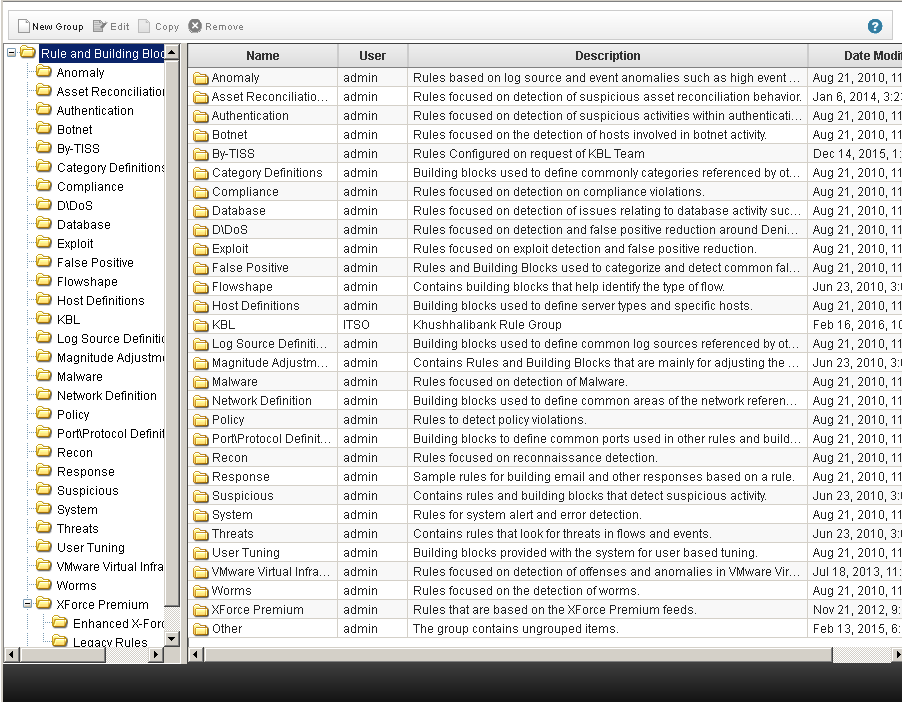

1. Goto to Offenses tab --> Rules in left pane --> Groups at top in right pane

2. It will open following wizard. click New Group at top

3. Add group name and description and click OK

How to create siem rule

SIEM Rule to identify log sources not sending event for specific time.

1. Open Offenses tab --> Rules in left pane --> Display --> rule


2. Click "Actions --> New Event Rule or whatever you want to create


3. It will open a wizard click Next


4. Click Events, Flows, Events and Flows, Offenses as you want to create. I selected Events and click next.

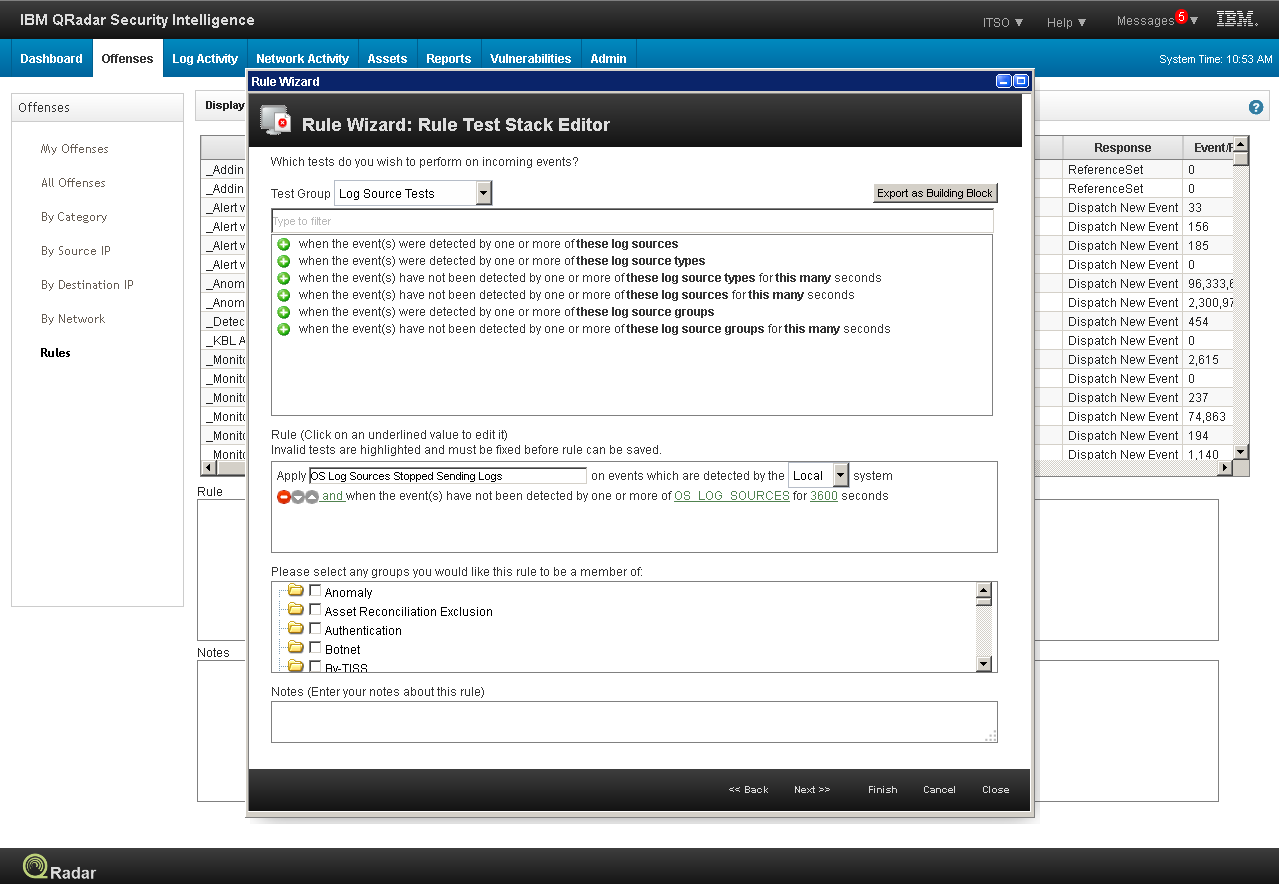

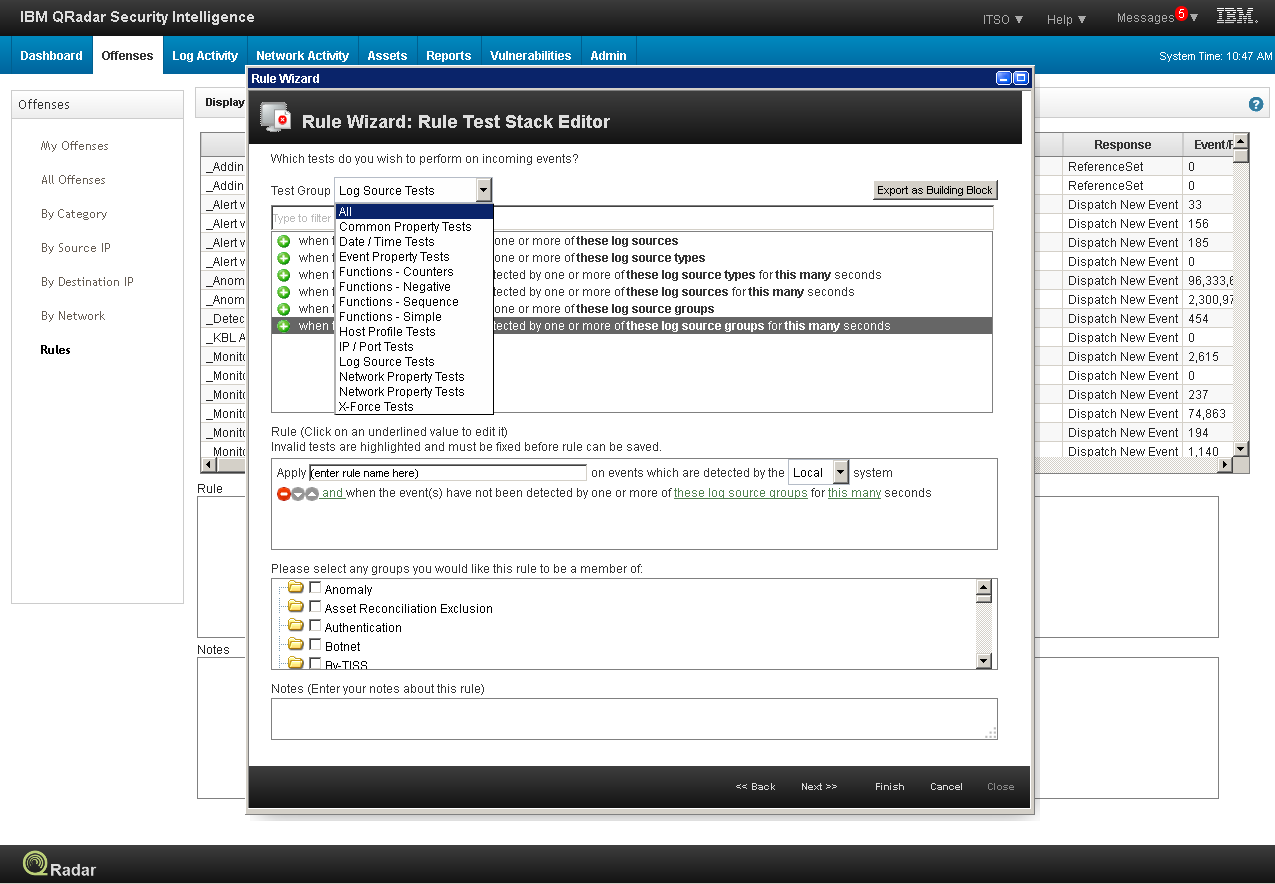

5. Select Test Group which is suitable to your requirements. I have selected Log Source Tests and added last option by clicking on + sign at left.


6. Add log sources which you want to test and put time in seconds to test. Select group in which you want to place this rule and click next.

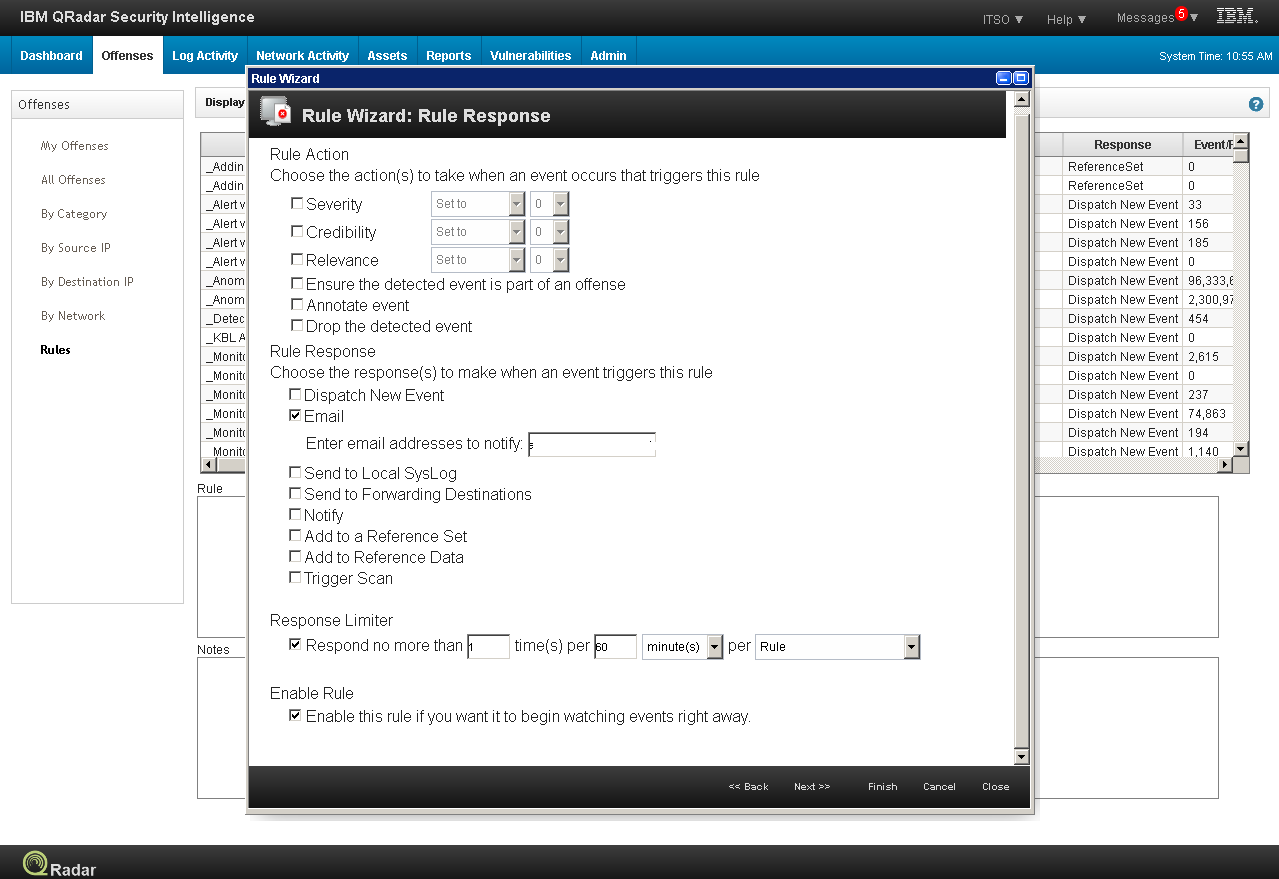

7. Select the action to be performed on this rule. I have selected Email to send and email for this rule.



8. Click the Finish to complete the rule.


It will create a rule to check the selected log sources not sending event for the specified amount of time.

SIEM use case for log sources not sending events for specific time.

IBM QRADAR WINCOLLECT AGENT INSTALLATION AND CONFIGURATION

IBM QRADAR WINCOLLECT AGENT INSTALLATION AND CONFIGURATION

Download wincollect agent and wincollect management console

http://www-01.ibm.com/support/docview.wss?uid=swg27045054

Managed Mode

1. Only wincollect will be installed at client end

2. SIEM Server will manage wincollect agent configuration and updates

Un-Manged Mode
1. Wincollect & Management console will be installed at client end
2. Agent will be stand alone and all configurations will be at client end. wincollect updates will also be independent from server

How to install WinCollect agent in Managed and Un-Managed (Standalone) mode

2. Right click on the wincollect-7.2.2-.exe and "run as administrator"

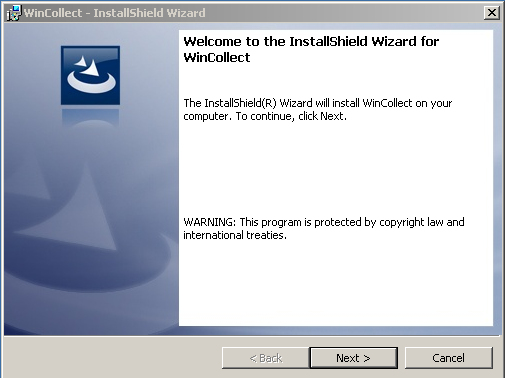

3. Click next

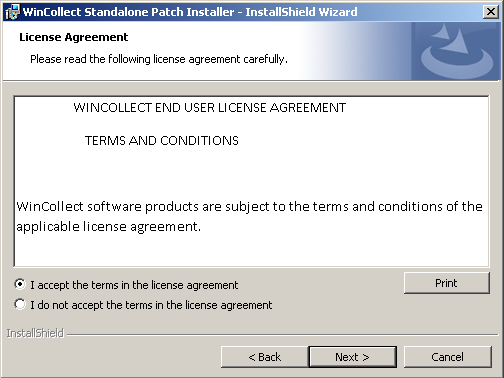

4. Click "I accept the terms in the license agreement" and click next

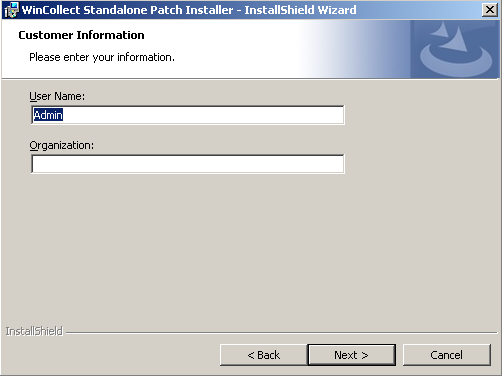

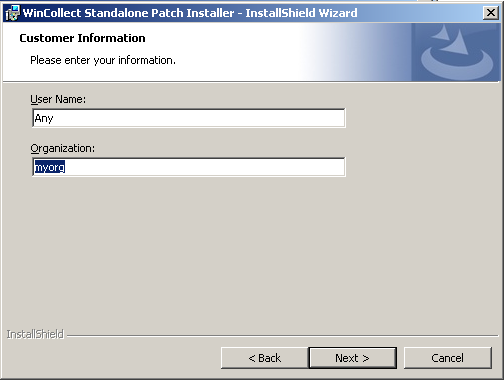

5. Leave the "User Name:" and "Organization:" field default and click next


6. Select the path to install wincollect. The selected installation path should have enough space for wincollect log caching.


7. In un-managed mode leave all fields blank and click next.
In SIEM Server managed mode put following fields.
Host Identifier: IP or Hostname as you wish.
Authentication Token: Token should be taken from SIEM Server Admin tab --> User management --> Authorized services
Configuration Console: Siem server ip and port (8413)
Syslog Status Server: leave it blank if your siem is all in one, otherwise put your syslog server's IP
Click Next


8. In un-managed mode leave all fields blank and click next.
In managed mode put following fields

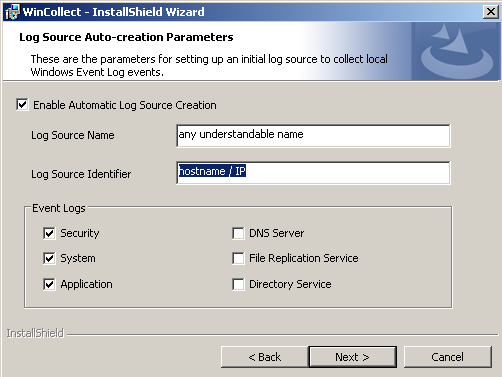

If you want to create a log source automatically in SIEM Server then select "Enable Automatic Log Source Creation" and put following details.
Log Source Name: Any descriptive name
Log Source Identifier: IP/hostname you already put in last step "Host Identifier" field
Select Event logs which you want to collect and click next.


9. In un-managed mode leave all fields blank and click next.
In Managed Mode leave it blank and click next

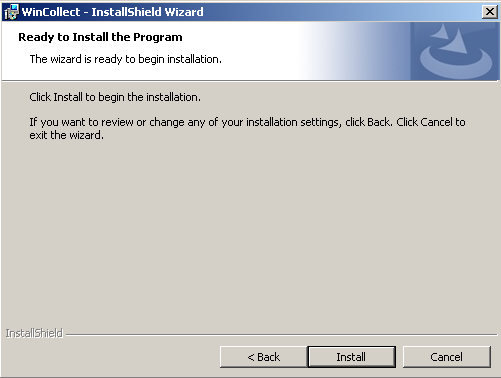

10. Click install

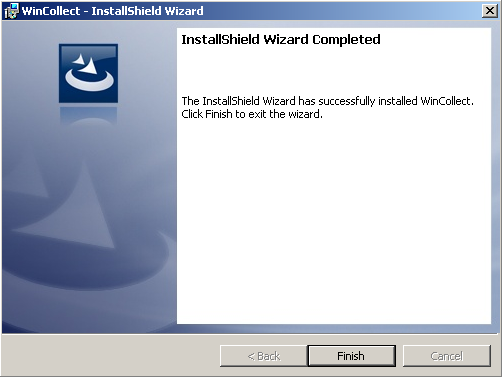

11. Click finish

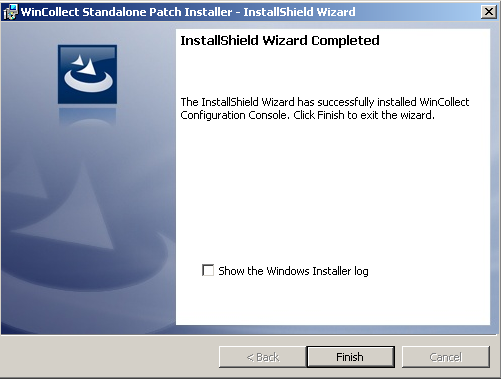

Install Management Console for Un-Managed wincollect agent.

1. Right click the stand alone


2. Click


3. Click


4. Click


5. Click


6. Click


7. Click


8. Click

How to Configure stand alone wincollect at client end.

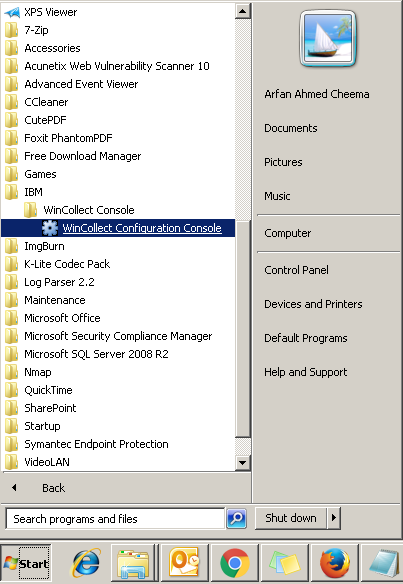

1. Goto Start and open "WinCollect Configuration Console"

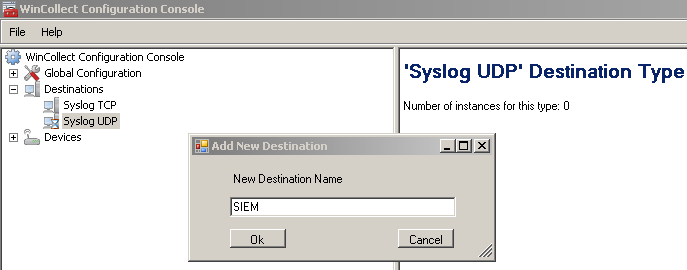

2. Expand "Destinations" and right click "Syslog UDP" then "Add New Destination"


3. Put Destination name "SIEM" and press "OK"


4. Add IP of the SIEM Server in Hostname field and click "Deploy" at right pane.

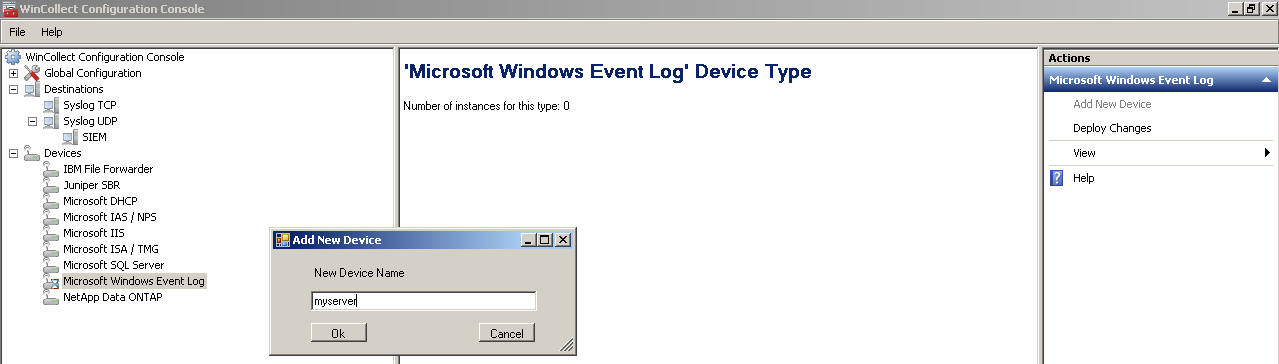

5. Expand devices section and right click "Microsoft Windows Event Logs" then "Add New Device"


6. Put the name of the log source and press ok

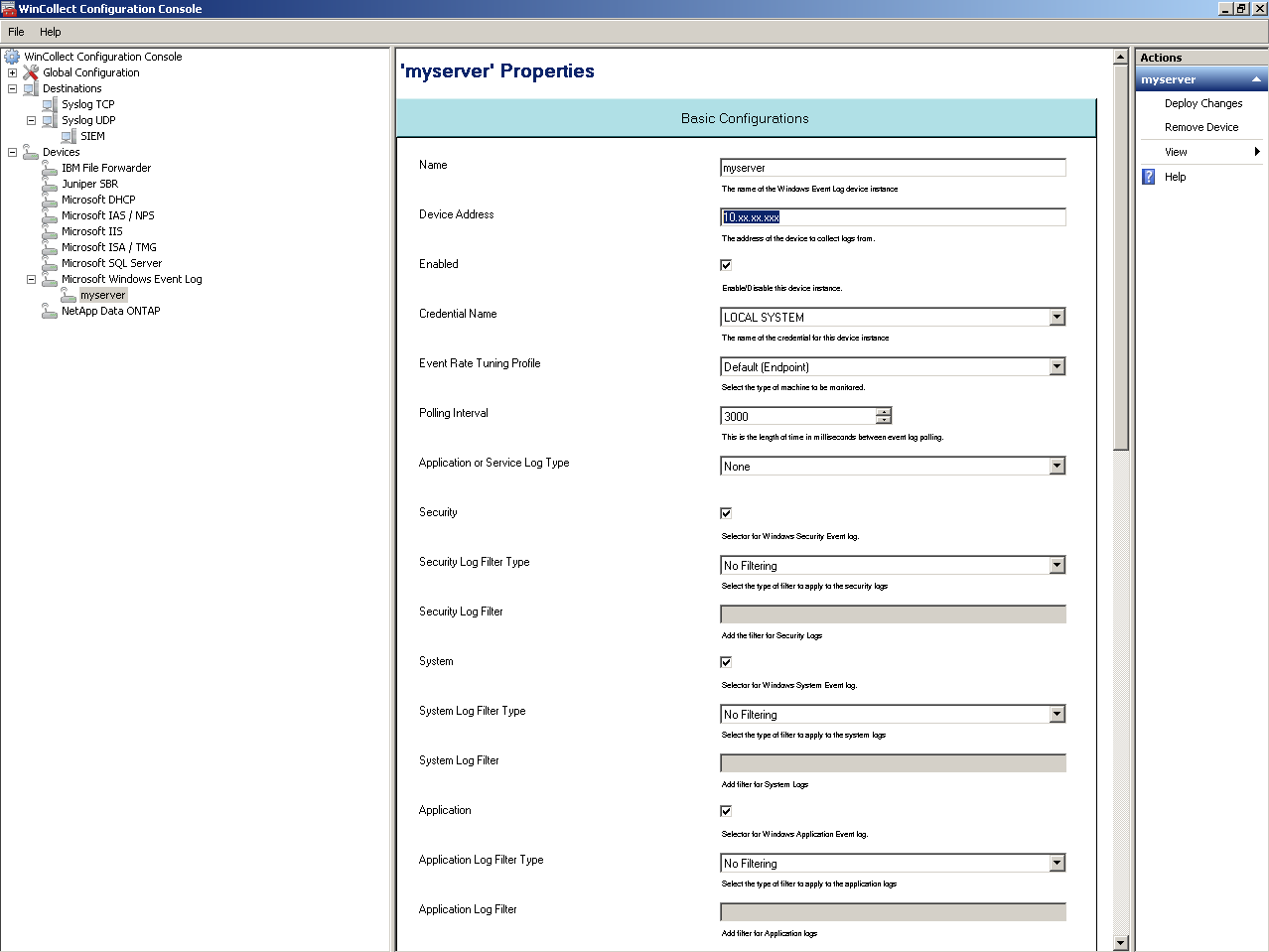

7. Put "Device Address" as IP and select "Security", "System", "Application" options for logs
Add destination by clicking on "Add", which we have created in first section named "SIEM" and "Deploy Changes" in right pane



It will start sending logs to the SIEM Destination.

File Forwarder Stand alone mode

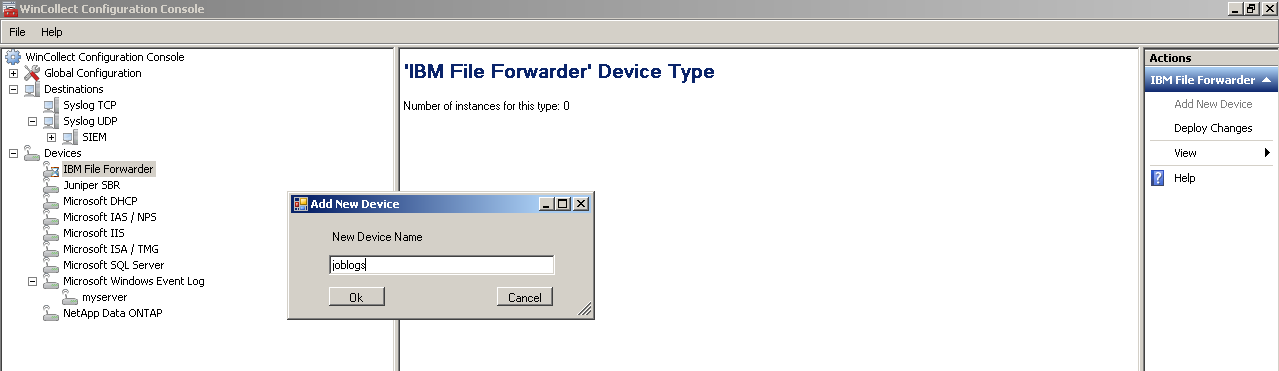

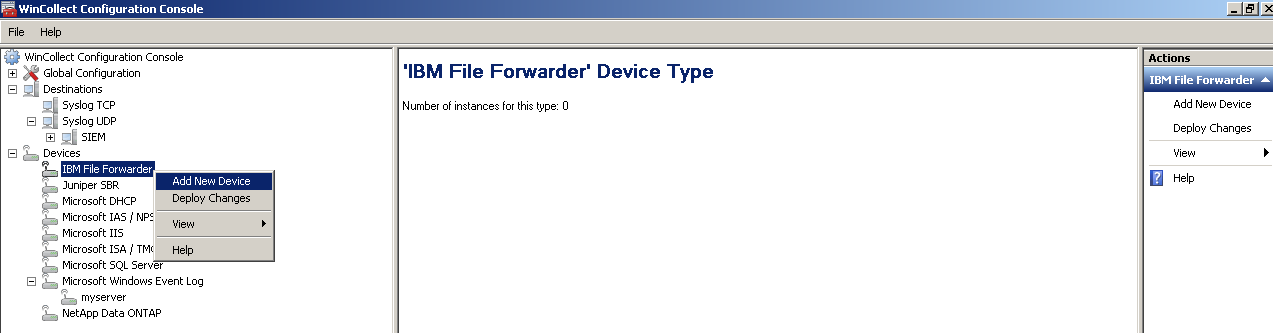

1. In Devices section right click "IBM File Forwarder" and "Add New Device"


2. Put name of device and press OK


3. Put "Device Address" then "Root Directory"-(path of log files to collect)
Add "Destination Required" which we have added previously by the name of SIEM and "Deploy Changes"


Its complete at client end, now you have to check it in SIEM server and add it in "Log Source" option of Admin tab if not added by itself.

Ports Required to start communication between SIEM Server and Wincollect agent.

TCP: 8413, 443 (Bi-Directional - SIEM Server end, Wincollect end)

UDP: 514 (SIEM Server end)
